Lacrosse, Digispark, Raspberry Pi, Roundup

Quite happy with the results from the current setup, I decided to complete my collection of sensors with a WSTX3-TH to put on the front balcony.

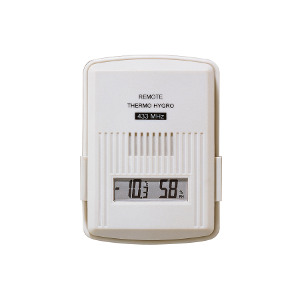

WSTX3-TH

As a free bonus, since I moved to the final version (from prototype breadboard to a PCB one with all the necessary pins properly grounded), I seem to receive the signal from a neighbouring sensor as well. With 3 temperature readings from outdoors, I think I'm covered for the winter!

Code is available on github :https://github.com/guillier/la_crosse_sensors

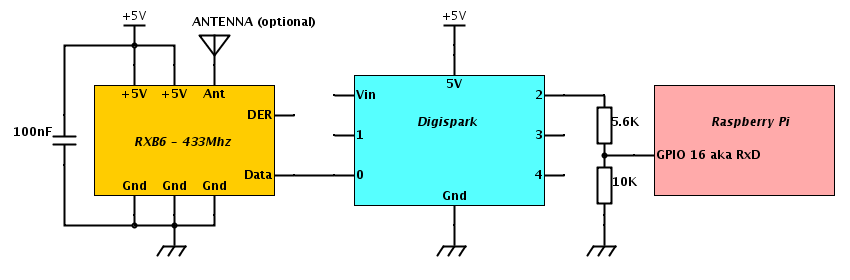

Schematic is quite simple:

Schematic

Time to move on (and to concentrate on the main programme, maybe?)
